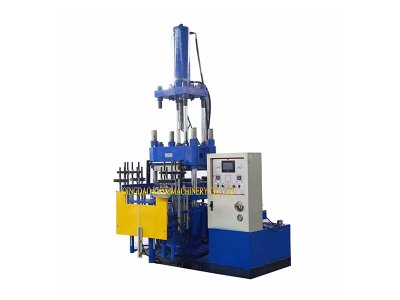

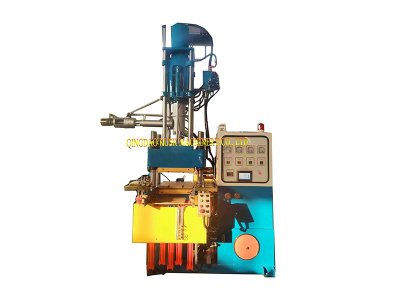

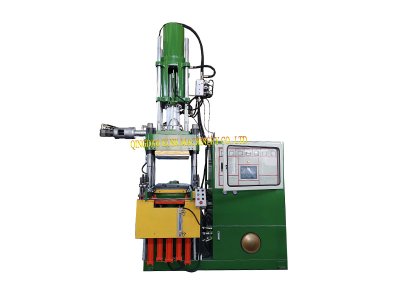

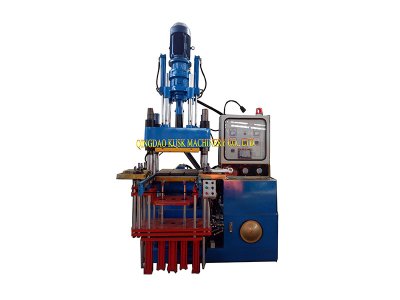

Vertical Rubber Injection Machine is a kind of equipment specially used for the production of rubber products, which is a kind of rubber injection machine. Compared with the horizontal rubber injection machine, the structural difference of the vertical injection machine is that the injection unit and the mould clamping unit are arranged vertically, and during the injection process, the injection unit opens upwards and the mould opens vertically. This equipment is more suitable for the production of some rubber products which need to fill complex moulds or have special shapes.
Vertical Rubber Injection Machine is a kind of equipment specially used for the production of rubber products, which is a kind of rubber injection machine. Compared with the horizontal rubber injection machine, the structural difference of the vertical injection machine is that the injection unit and the mould clamping unit are arranged vertically, and during the injection process, the injection unit opens upwards and the mould opens vertically. This equipment is more suitable for the production of some rubber products which need to fill complex moulds or have special shapes.
Type | XLB-D0.50MN 400X400X1 | XLB- D0.80MN 450X450X1 | XLB-D1.00MN 500X500X1 | XLB- D1.60MN 600X600X1 | XLB-D2.00MN 600X650X1 | XLB-D2.50MN 650X650X1 | XLB-D3.15MN 650X700X1 | XLB-D2.50MN 700*700*1 |
Total pressure(MN) | 0.50 | 0.80 | 1.00 | 1.60 | 2.00 | 2.50 | 3.15 | 2.50 |
Plate size(mm) | 400X400 | 450X450 | 500X500 | 600X600 | 600X650 | 650X650 | 650X700 | 700*700 |
Clamping stroke | 300 | 300 | 300 | 350 | 350 | 380 | 400 | 380 |
Injection pressure | 120 | 120 | 120 | 140 | 140 | 160 | 180 | 160 |
Injection stroke | 320 | 320 | 350 | 350 | 350 | 380 | 400 | 380 |
Barrel specifications | 70X215 | 75X225 | 80X255 | 85X300 | 90X320 | 95X350 | 100X380 | 95*350 |
Main motor power(KW) | 2.2+2.2 | 2.2+2.2 | 2.2+3.0 | 2.2+3.0 | 2.2+3.0 | 3.0+3.0 | 3.0+5.5 | 3.0+3.0 |
Weight(KG) | 1800 | 2200 | 2800 | 4500 | 6000 | 7800 | 11000 | 8200 |
